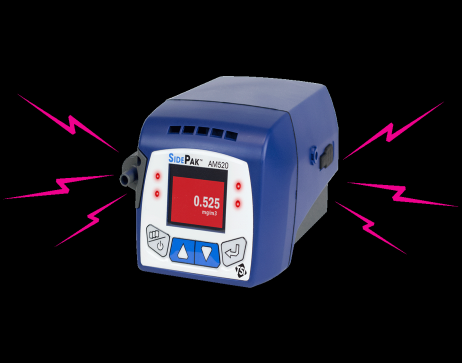

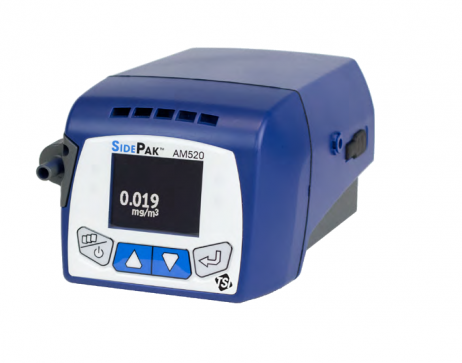

TSI SidePak Personal Aerosol Monitor AM520

TSI SidePak Personal Aerosol Monitor AM520

TSI SidePak Personal Aerosol Monitor AM520

The SidePak™ Personal Aerosol Monitor AM520 is a small, portable, battery-operated, data-logging, light-scattering laser photometer that provides real-time aerosol mass concentration readings of dusts, fumes, mists, smoke and fog within a worker breathing zone. Newly designed inlet conditioners increase the mass concentration capability and provide size fraction cut points for PM 10 , PM 4 (Respirable), PM 5 (China Respirable), PM 2.5 , PM 1 and 0.8 μm Diesel Particulate Matter (DPM). This monitor is the perfect solution for real-time, personal aerosol sampling in a variety of workplace environments, including but not limited to general industry, foundries, construction sites, chemical plants, refineries, petrochemical, power and utilities, transportation, aerospace, maritime, confined spaces and mining.

New Features

  • Robust impactors for higher mass concentration range---MORE THAN EVER BEFORE!
  • Audible and visual alarms---THAT CAN TRULY BE SEEN AND HEARD!
  • 8 μm DPM impactor---THE FIRST OF ITS KIND!
  • PM 5 China respirable size fraction impactor
  • High capacity battery---ENABLING 20+ HOURS OF CONTINUOUS OPERATION TO ENSURE ULTIMATE FLEXIBILITY!
  • Color OLED display

Features and Benefits

  • Real-time mass concentration measurement and data logging for "in-the-field" data analysis
  • Push button menu operation or programmable through newly improved TrakPro™ v5 Software
  • User-selectable alarm levels to alert workers to high aerosol concentrations
  • Newly designed robust impactors enable reliable size fraction measurements at higher aerosol concentrations over longer run times

Specifications

Sensitivity

  • Sensor Type  :  90° light scattering, 650 nm laser diode
  • Calibration  :  Calibrated against a gravimetric reference using the
  • Respirablefraction of standard ISO 12103-1, A1 Test Dust
  • Aerosol  :  Concentration Range 0.001 to 100 mg/m3
  • Particle Size Range  :  0.1 to 10 μm
  • Minimum Resolution  :  0.001 mg/m3
  • Zero Stability   :  ±0.001 mg/m3 over 24 hours using10 second time constant
  • Temperature Coefficient   :  Approximately +0.0005 mg/m3 per °C
  • (for variations from temperature at which instrument was last zeroed)

Flow Rate

  • Range  :  User-adjustable, 0 to 1.8 liters/min
  • (L/min) Note: Upper range is dependent on impactor or
  • cyclone attached to the SidePak AM520 Monitor

Temperature Range

  • Operating Range  :  32° F to 120° F (0° C to 50° C)
  • Storage Range   :  -4° F to 140° F (-20° C to 60° C)
  • Operational Humidity   :  0 to 95% RH, non-condensing

Alarms

  • Alarm Types   :  General, STEL
  • Default Settings   :  0.5 mg/m3, 1 mg/m3, 3 mg/m3, 5 mg/m3,15 mg/m3, Off
  • Programmable from 0.001 to 999 mg/m3 through TrakPro Software
  • Alarm Indicator  :  95 dBA (at one foot) audible horn, blinking red LED, flashing red OLED display
  • Ringback Delay   :  30 sec, 1 min, 3 min, 5 min, 10 min, Off

Data Logging

  • Data Points  :  Approx. 80,000(55 days logging once per minute)
  • Logging Interval User-adjustable, from 1 second to60 minutes

User-Select Calibration Factors

  • Factory Setting   :  1.0 (non-adjustable)
  • Ambient Setting   :  0.38 (non-adjustable)
  • User-Defined Settings   :  5, with user-defined labelsvia TrakPro Software
  • Range   :  0.1 to 10.0, user-adjustable

Physical

  • External Dimensions  :  5.1 x 3.7 x 3.1 inch (129.5 mm x 94 mm x 78.4 mm)
  • with battery
  • Weight   :  22 oz (0.62 kg) with 803300 battery
  • Display   :  160 x 128 resolution color OLED display
  • Tripod Mounting Nut   :  ¼-20 female thread

Battery

  • Rating   :  5400 mAH Li-Ion Pack
  • Run Time     :  Greater than 20 hours at 1.7Lpmwith a PM2.5 impactor
  • Charge Time  :  4.0 hours (typical with a fullydepleted battery)

Power Supply

  • Input Voltage Range   :  100 to 240 VAC, 50 to 60 Hz
  • Output Voltage   :  12 VDC @ 3.0A

Maintenance

  • Factory Clean/Calibrate  :  Recommended annually
  • User Zero Calibration  :  Before each use
  • User Flow Calibration   :  As needed with use of inlet conditioner
  • Part Number:
