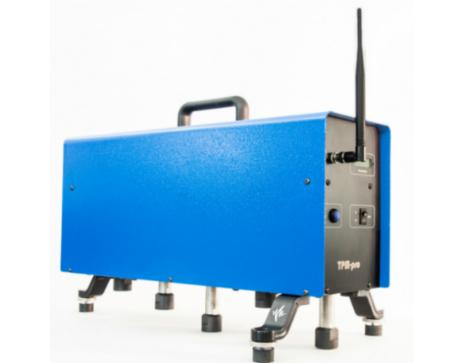

Ntek Tapping Machine TPM-Pro

Ntek Tapping Machine TPM-Pro

New TPM-PRO tapping machine is the result of a team work of Italian technicians, specialized in design and realization of measurement tools for acoustical impact calculation.

Rigid and solid structure has been designed specifically to guarantee a better transportability and make it one of the lightest on the market.

Soft bag and retractable pins guarantee an easy transportability and assure the best comfort during measurements.

Lithium batteries has operative capacity of 3 hours.

Wireless remote control permit the user to turn on and turn off machine in remote: transmission ray is 80 meters in open field.

STANDARD EQUIPMENT

  • Wireless remote control

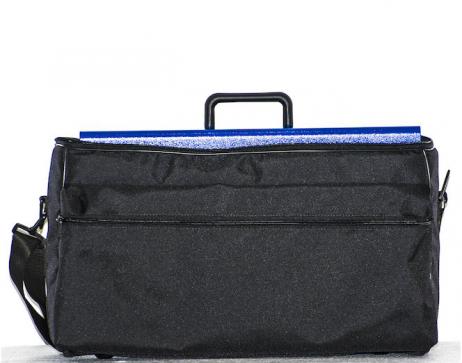

  • Soft carry bag with shoulder strap
  • Antenna
  • Lithium batteries

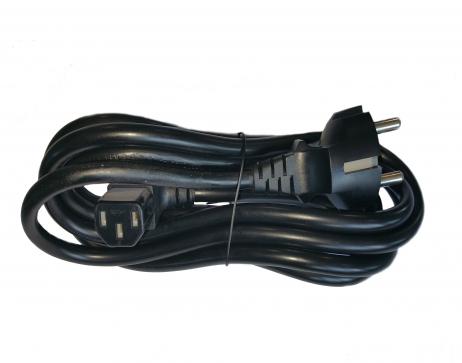

  • Electricity supply cable 220V
  • 73 mm calibrator

CONFORMITY LAWS

  • UNI EN ISO: 10140-3, ISO 140-7, ISO 16283-2, ASTM E492, ASTM E1007.
  • Conform to CE directives



TPM Pro Tutorial video (from NTEK) - 30 Jan 2019

TECHNICAL FEATURES

• Dimensions: 160 x 290 x 520 mm
• Weight: 11 kg with batteries, antenna and remote control
• Supports: 3 pins retractable and adjustable in height
• Power: 100 ÷ ¬240VAC, 50/60 Hz
• Consumption: 220VA
• Antenna

Battery

• Rechargeable Lithium batteries
• Duration: 3 hours
• Battery derating: <5% loss in capacity per 900 discharge/charge cycles
• Battery charging time: 2 hours

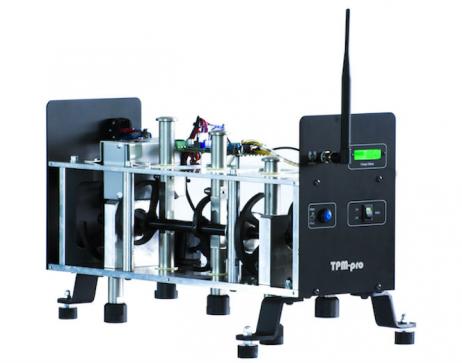

Hammers

• Five in line hammers
• Interaxcle spacing: 100±3 mm
• Weight: 500±6 g
• Diameter: 30±0.2mm
• Front radius: 500 mm
• Curve: ~ 500 mm
• Tapping rate: 10 impacts per second, rpm controlled by encoder feedback loop
• Sequence: 1, 3, 5, 2, 4
• Effective fall height: 40 mm adjustable ±5 mm

Remote control

• Wireless: 433 MHz
• Transmission ray: 80 m in open field

  • Part Number:
