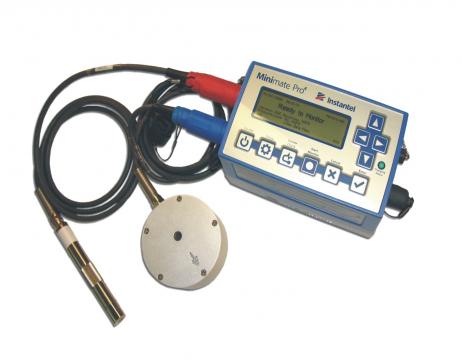

Instantel Minimate Pro4™ vibration and overpressure monitor

Instantel Minimate Pro4™ vibration and overpressure monitor

The Minimate Pro4™ vibration and overpressure monitor offer advanced monitoring technology with unequalled durability.

  • Four recording channels for one triaxial geophone (ISEE or DIN) and an ISEE linear microphone.
  • Dedicated function keys and intuitive menu enable quick and easy setup.
  • Sample rates from 512 to 65 S/s per channel, independent of record times.
  • Continuous monitoring means zero dead time between events, even while the unit is processing.
  • Instantel Histogram Combo™ mode allows capturing thousands of full waveform records while recording in histogram mode.
  • Auto Call Home™ feature automates remote monitoring applications.
  • Non-volatile memory with standard 8000-plus event storage capacity.
  • Records full waveform events over two hours long.
  • Fully compliant with the International Society of Explosives Engineers "Performance Specifications for Blasting Seismographs."
  • Ethernet® interface for high speed communications and data transfer. (Auto Call Home™ is not supported over the Ethernet)



Application

  • Range of Applications
  • 4-Channel data acquisition
  • Blast-monitoring for compliance
  • Pile driving
  • Construction activity
  • Demolition activity
  • Remote monitoring

Features

  • Key Features Ethernet® interface when connected directly to the unit (Auto Call Home is not supported over the Ethernet)
  • Auto Call Home™ remote monitoring function
  • Cast aluminium case
  • Water resistant to IPC67 – submerse to 30 cm (1 ft.) for 24 hours
  • Compliant to CE Class B - Meets or exceeds RF and EMI requirements
  • Sensor Check for automatic error checking



Specification

  • 4 Channels  :  Microphone and Triaxial Geophone
  • Memory  :  8,000 plus events
  • Record Modes  :  Manual, Continuous, Histogram, Instantel Histogram Combo, and VDV –Vibration Dose Value (optional)
  • Sample Rates  :  512 to 65,536 S/s per channel
  • Dimensions  :  254 X 117 X 108 mm (10.0 X 4.6 X 4.25 in)
  • Weight  :  2.27 kg (5 lbs)
  • User Interface  :  10 domed tactile keys
  • Part Number:
