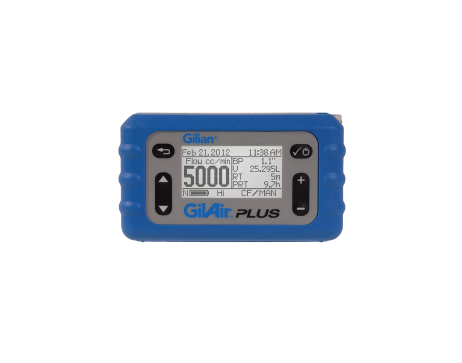

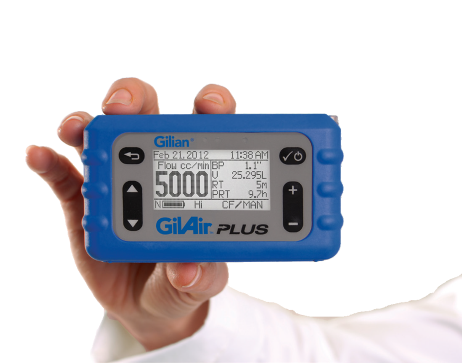

Gilian GilAir Plus Personal Air Sampling Pump

Gilian GilAir Plus Personal Air Sampling Pump

Gilian GilAir Plus Personal Air Sampling Pump

The Gilian GilAir® Plus is equipped with QuadModeSM Air Sampling Technology performing high-flow constant pressure and constant flow and low-flow constant pressure and constant flow without external adapters. The pump’s wide dynamic flow and pressure ranges address all personal air sampling methods with flow ranges between 1 – 5,000 cc/min.

GilAir® Plus delivers the reliable performance users expect from the Gilian brand. The pump has high back-pressure capability of up to 40” H2O in high-flow and up to 25” H2O in low flow.An automatic self check system ensures sample accuracy by continuously monitoring pump performance and components.

The selectable automatic fault recovery feature provides restarting the event the sample tubing becomes crimped or briefly blocked. This feature attempts to restart the pump up to 10 times every 3 minutes to check if the block cleared, fault time is not added to the accumulated and displayed sample runtime. Automatic fault recovery can be disabled if desired.

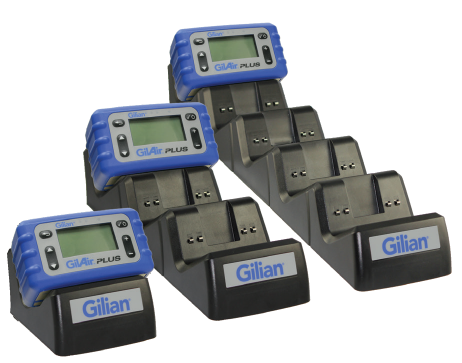

The GilAir® Plus dock provides charging and communication functions for the pump. Once docked, the PC application allows users to review datalogs, generate sampling reports,manage sampling programs, and create pump set-up profiles that expedite deployment of large pump fleets. The SmartCalSM feature uses the dock as a communication link between appropriate calibration devices and the GilAir® Plus. SmartCalSM automates calibration and records pre and post sample calibrations in the pump’s datalog.

The GilAir® Plus is capable of providing an ambient or standard temperature and pressure corrected (STP) flow rate and data logging (in appropriate models of the pump).

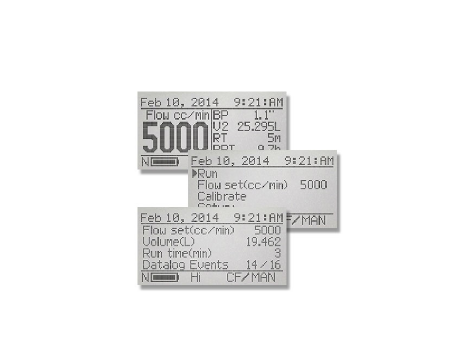

An intuitive menu and keypad interface make it easy for users to make adjustments or change settings on the pump using a lockable keypad to prevent tampering once the pump is set up for use.

  • QuadModeSM Air Sampling Technology
  • Selectable Automatic Fault Recovery
  • Standard Temperature & Pressure Correction
  • Superior Design & Comfort
  • Real-time Clock with Data-logging



Specification

  • Flow Range : Constant flow 20 - 5,000 cc/min. without external adaptors
                            Constant pressure 1 - 5,000 cc/min without external adaptors
  • Flow Modes : Constant Flow or High and Low Flow Constant Pressure
  • Accuracy :  - Flow Display± 5% or 3 cc/min of set flow, whichever is larger
                        - Constant Flow Control - ± 5% or 3 cc/min of set flow, whichever is larger
                        - Constant Pressure Control - ± 10% of back-pressure
                        - Barometric Pressure - ± 5% of calibration flow from 460 to 1060 mmHg   (STP Model Only) in high flow ranges
  • Temp. Range : Operating 32°F to 113°F (0°C to 45°C)
                              Storage -4°F to 113°F (-20°C to 45°C)
                              Charging 41°F to 104°F (5°C to 40°C)
  • Humidity Range : Operating 5-95 %RH, non-condensing
                                   Storage 5-98 %RH, non-condensing
  • Display : Flow rate, sample time, and sample volume in actual conditions
  • Dimensions : 4.3 x 2.4 x 2.4 inches (10.9 x 6.1 x 6.1 centimeters)
  • Weight : 20.5 ounce (581 grams)
  • Power Options : Removable rechargeable nickel-metal hydride (NiMH) battery pack,
                                Optional alkaline battery pack, or DC power
  • Charging Time : Less than 3.5 hours
  • Approvals : EN 1232 Compliant Ingress Protection: IP54
                         Intrinsic Safety US/Canada NRTL (FM)
                         - Class I, Div 1 Groups A, B, C, D, E, F, and G;
                         - Class II, Div 1 Zone 0; Class III, T4
                         ATEX/IECEx II 1 G & Ex ia IIC T4 CE
                         - Applicable Directives ATEX 94/9/EC
                         - EMC 2004/108/EC (RFI) LVD 2006/95/EC RoHS Compliant
  • Part Number:
