ecom-D Flue Gas Analyser

ecom-D Flue Gas Analyser

EXTREMELY capable.

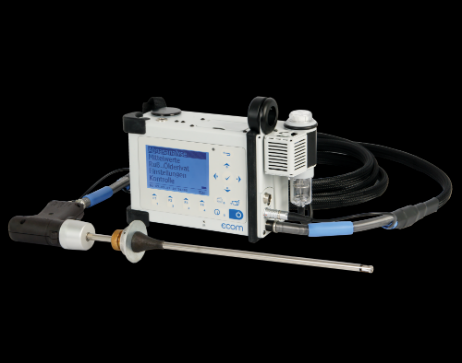

ecom-D

Hand-held Flue Gas Analyser for Industrial Applications

  • Hand-held instrument with gas cooler option
  • For perfect NOx/SO2 measurements
  • Up to 6 sensor options (Longlife sensors)
  • Direct measurement of CO2 via IR sensor possible
  • Measurement of hydrocarbons via IR sensor possible
  • CO sensor overload protection without measurement interruption
  • Electronic condensation monitoring
  • Backlit display and keypad
  • Aluminium housing (ultra-light) approx. 2kg (complete incl. sampling probe & tube)



O2, CO, NO, NO2, SO2, H2S, H2, CO%, CO2, CxHy, H2S, CH4

  • O2/CO (H2 comp.)/NO/ NO2 Longlife sensors (more than 4 years lifespan under normal load)
  • Automatic CO switch-off and fresh air purge (without measurement interruption)
  • Condensate trap resp. gas cooler incl. electronic condense monitoring (depending on selected variant)
  • Complete with ultra-light aluminium housing
  • Powerful magnets at the housing back
  • With high-value sampling probe incl. thermocouple, fixation cone and high value sampling tube
  • T-Room probe/T-Room stick (according to users' request or types)
  • Calibration certificate - generated after 100% sensor calibration in climatic chamber
  • Free downloadable PC Software

Dimensions

  • (L x H x W): 220 x 125 x 85 mm

Weight:

  • approx. 2 kg (complete incl. sampling probe & tube)

pruefsiegel_sw

Approved acc. to EN 50379-2 and 1. BImSchV
