BGI PQ100 Pump

BGI PQ100 Pump

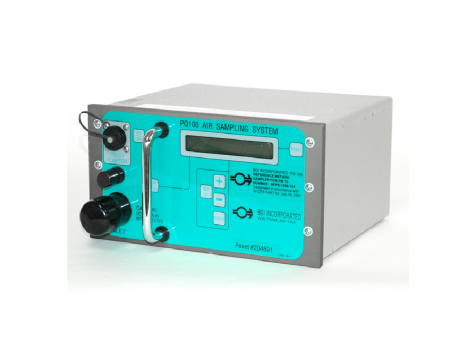

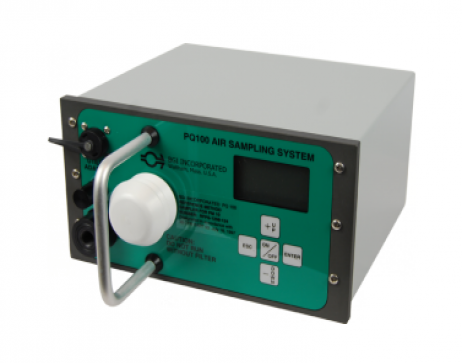

The BGI PQ100 Pump provides accurate and consistent air flow between 2 – 25 liters per minute using microprocessor and mass flow control. Intuitive firmware allows sampling periods to be pre-programmed and begun without user intervention. The PQ100 displaygives elapsed time, total sample volume, battery state, and instantaneous flow rate.



Applications

  • Ambient PM Monitoring
  • Hexavalent Chromium and other heavy metal sampling
  • Remote Site Monitoring
  • Suitable for system integration projects

Features

  • Accurate EPA Specified Flow Rate to ±0.5%
  • Precision Flow to ±2%
  • Download Software Included

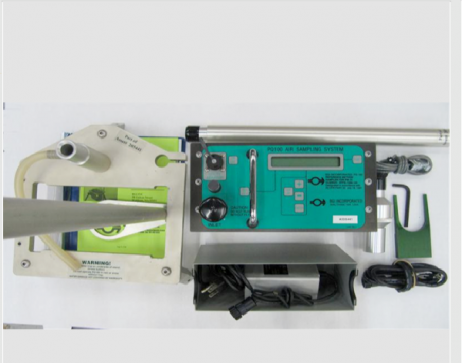

  • Complete System is Portable and easily usable Indoors or Out
  • Weatherproof Enclosure Included
  • 24 Hour Sample on Internal Battery



Specifications

  • PQ100 Weight  :  19 lbs (8.62 kg)
  • PQ100 Pump Dimensions  :  10 x 6 x 9.7 in. (25.4 x 15.2 x 24.6 cm)
  • Flow Control  :  2 – 25 LPM
  • Flow Precision  :  ±2%
  • Data Output  :  RS232 connection
  • Internal Battery  :  12V 12Ah short circuit protected
  • Charging System  :  120 VAC (60 Hz) or 240 VAC (50 Hz)
  • Part Number:
