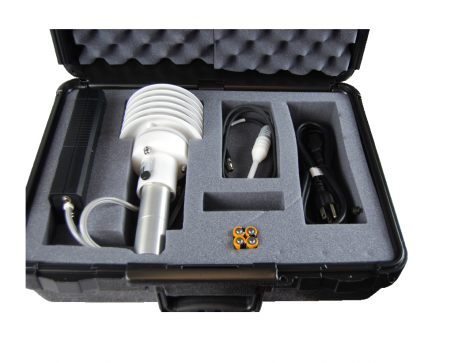

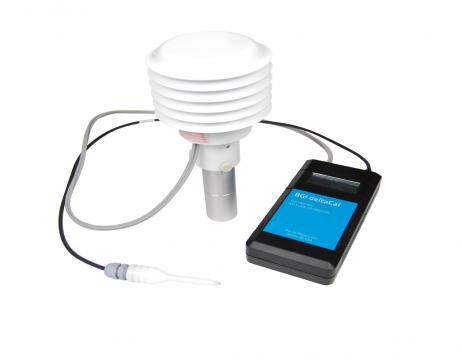

BGI deltaCal Volumetric Air Flow Calibrator

BGI deltaCal Volumetric Air Flow Calibrator

The BGI deltaCal® is a simple-to-use, NIST Traceable Standard for volumetric air flow, barometric pressure, and ambient temperature. The deltaCal is a venturi based system with built-in compensation for changes in ambient temperature and pressure. All deltaCal systems are built and tested at Mesa which is both a NIST traceable Calibration Laboratory and an ISO 17025 facility.

 To begin calibration, simply replace the sampler inlet head on any U.S. EPA PM10 and PM2.5 designated samplers with the deltaCal sampling head. Additionally, the deltaCal is useable with any air sampler in the 1.5 to 19.5 LPM range with an accessory adapter. The higher flow DC100 Model allows for calibration of European standard PM samplers. The lower flow DC200 Model allows for calibration of nephelometers and other light scattering particulate monitors.

  • Total flow range of 2 to 19.5 LPM
  • DC100 Model provides flow range of 10 – 60 LPM
  • DC200 Model provides flow range of 0.3-3.5 LPM
  • NIST-traceable accuracy 1% of flow reading
  • Continuous uninterrupted output display of all parameters



Application

  • Calibration and audits of PM2.5 and PM10 samplers in accordance with U.S. EPA requirements
  • May be used on any sampler in the 1.5 to 19.5 LPM range, 10-60, 0.3-3.5
  • Appropriate for field or indoor use
  • Calibration of European PM10 samplers operating at 38.4 LPM using the DC100
  • Calibration of 50 LPM DICOT samplers and standard DICOT Samplers

Features

  • Venturi-based calibrator
  • Fully NIST-traceable
  • 0.75% accuracy per reading
  • One switch (off/on) operation — all data displayed on screen
  • No moving parts, completely silent
  • 20 hour battery life (4-AA)
  • Furnished with universal power supply (120/240 VAC)
  • Supplied software, with download and reporting capability



Specification

  • Flow Rate Range (3 Models) : 1.5 – 19.5 LPM – DC1
  •                                                          10 – 60 LPM – DC100                                                                                                                           0.8 — 3.5 LPM – DC200
  • Temp Operational Range : -30oC to 55oC
  • Temp Reading Range : -40oC to 55oC
  • Barometric Pressure Range : 400 – 800 mmHg (534 – 1066 millibars)
  • Dimensions of Measuring Head : 5 in. Max OD (12.7 cm) X 10 in. high (25.4 cm)
  • Dimensions of Control Module : 8 in. high (20.3 cm) X 4 in. wide (10.15 cm) X 1.7 in. thick (4.32 cm)
  • Combined Weight : 2.2 lbs(1 kg)
  • Part Number:
